Cutting to length
One bar yields a complete set of components in the lengths given on the drawing.
CNC services · Szczecin
Steel profile cutting
We cut profiles in full commercial bar lengths up to 12 metres — with no prior splitting of the material. We cut to length, cut holes and bevel edges in a single setup.
- HEB 100–600 beams and HP 60–430 sections
- Channels, angles and flat bars up to 400 × 35 mm
- Straight cuts and mitre cuts at 45° and 60°
We accept DXF, DWG and STEP files — no conversion needed on your side.
Schematic drawing: a bar up to 12 metres long cut at an angle, and the sections we process.
What sections we cut

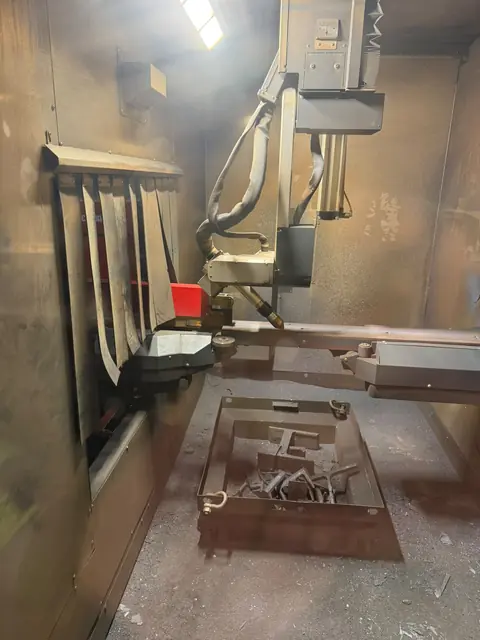

The range of the STIGAL MultiProfiler 3D line — a robotic machine for structural sections.
| HEB beams | HEB 100 – HEB 600 |
|---|---|
| HP sections | HP 60 – HP 430 |
| Flat bars | up to 400 × 35 mm |
| Other sections | channels, angles, hollow sections |
| Maximum length | 12 m |
| Edge bevelling | 3D bevel head, during the cut |
| Material | carbon steel |
Why 12 metres matters
A commercial bar is usually 12 metres long. A machine that takes shorter material forces the profile to be cut beforehand — an extra operation and extra waste on every cut.

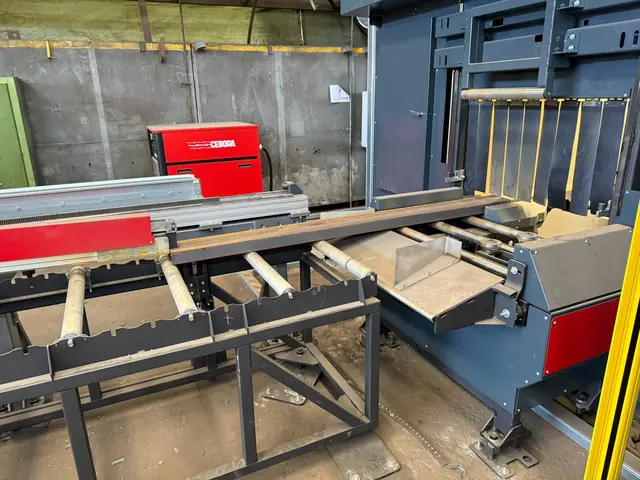

- The full bar goes onto the machine in one piece
- We nest the components so that as little waste as possible remains
- Holes and cut-outs are made in the same setup as cutting to length
Mitre cutting at 45° and 60°
For mitre cutting we have a separate machine — the semi-automatic MOST UE 530 DSA band saw. It cuts at 0°, 45° and 60°, to the left and to the right, as well as bundles of profiles stacked together.
| Cutting angles | 0° / 45° / 60° |
|---|---|
| Round section | up to Ø 530 mm |
| Rectangular section | 700 × 335 mm |
| Profile bundles | 485 × 300 mm |
Frame corners, bracing mitres and angled connections then need no trimming with a grinder on site — the component arrives cut at the right angle.
Schematic diagram: mitre cutting on the band saw, to the left and to the right.
What else we do on a profile
Everything in a single setup — no moving material between workshops.
Cut-outs and holes
Made in the same setup as cutting to length, with no separate drilling operation.
Edge bevelling
The 3D head prepares the weld edge together with the cut.
Bevelling and chamferingComplete set for prefabrication
Components cut to length, bevelled and marked — ready for assembly and welding at your site.
PrefabricationHow to order profile cutting
From drawing to collection of the finished components.
-
Drawing
You send a DXF, DWG or STEP file with lengths and angles.
-
Quote in 24 h
We send back a price and confirm the machine slot.
-
Cutting
Your material or ours — we agree on this at the quotation stage.
-
Collection
You collect the finished components in Szczecin at ul. Antosiewicza 1.
Frequently asked questions
How long a profile can you cut?
Up to 12 metres, i.e. full commercial bar lengths, with no prior splitting of the material.
What sections do you process?
HEB 100–600 beams, HP 60–430 sections, channels, angles, flat bars up to 400 × 35 mm and hollow sections.
Do you cut at an angle?
Yes. The band saw cuts at 0°, 45° and 60°, to the left and to the right. The CNC machine additionally bevels edges in 3D.
Do you cut aluminium profiles?
We work with carbon steel.
Can you cut holes in a profile?
Yes. Holes and cut-outs are made in the same setup as cutting to length.
Do you take on single pieces?
Yes, both single components and complete sets for a whole structure.
How much does it cost?
Every job is priced individually — the price depends on the section, length, number of cuts and quantity. We send the quote within 24 hours.
Quote within 24 hours
Please send a drawing with lengths and angles — we will reply with a price and lead time within one working day. We accept DXF, DWG and STEP files.
