Simple and complex contours
Parts cut exactly from the drawing, without simplifying the shape and without breaking it down into simpler pieces.
CNC services · Szczecin
Plasma and oxy-fuel plate cutting
We cut plates to size from your drawing — outer contour, holes and internal cut-outs in a single pass. The plate fits on a 12 000 × 3 000 mm table, and the thickness goes up to 40 mm with plasma and up to 150 mm with the oxy-fuel torch.
- Plasma for thinner sections, oxy-fuel torch for thick ones
- A plate twice as long as a typical 6 × 2 m commercial sheet
- Edge bevelled in the same pass as the cut
We accept DXF, DWG and STEP files — no conversion needed on your side.
Schematic diagram: the head guides the torch over the plate, cutting the outer contour and holes in a single pass.
Plate cutting specifications
Data from our hall at ul. Antosiewicza 1 — not from the manufacturer's catalogue.

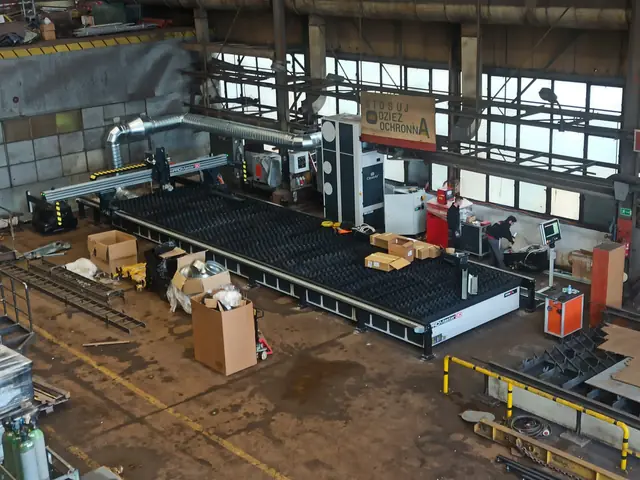

| Cutting table | 12 000 × 3 000 mm |
|---|---|
| Cutting thickness — plasma | up to 40 mm |
| Cutting thickness — oxy-fuel torch | up to 150 mm |
| Edge bevelling | 3D bevel head, during the cut |
| Pipe cutting | Ø 60–650 mm |
| Material | carbon steel |
| Accepted files | DXF, DWG, STEP |
What these figures mean in practice
- We lay the whole plate on the table — without splitting it into two beforehand
- We nest the parts on one plate so that as little waste as possible remains
- The bevel comes out together with the contour, so you do not pay for a second operation
- We take on single parts and projects running to several hundred hours of cutting
Thick plates — where lasers stop
Laser cutting stops at around 20–25 mm. Our plasma goes up to 40 mm, and the oxy-fuel torch up to 150 mm.
Laser cutting
approx. 25 mm
Our plasma
40 mm
Our oxy-fuel torch
150 mm
The thicker the section, the fewer workshops in the region can cut it. That is where our field begins.
What we cut

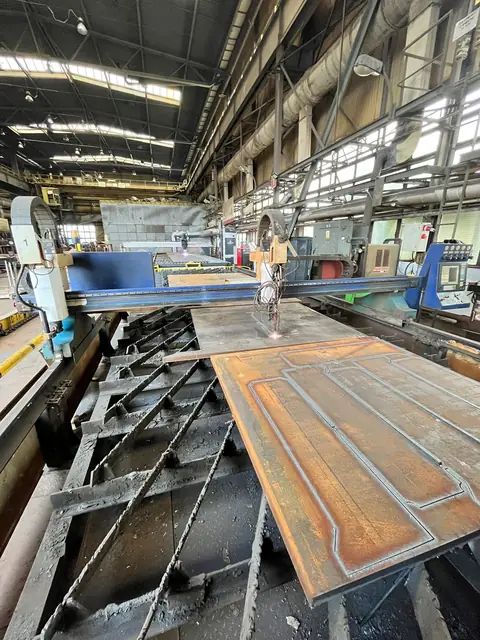

Anything that can be described by a contour on a drawing — from a single gusset plate to a complete set of components for a structure.
Holes and internal cut-outs
For bolts, penetrations and service openings — cut in the same pass as the outer contour.
Structural components

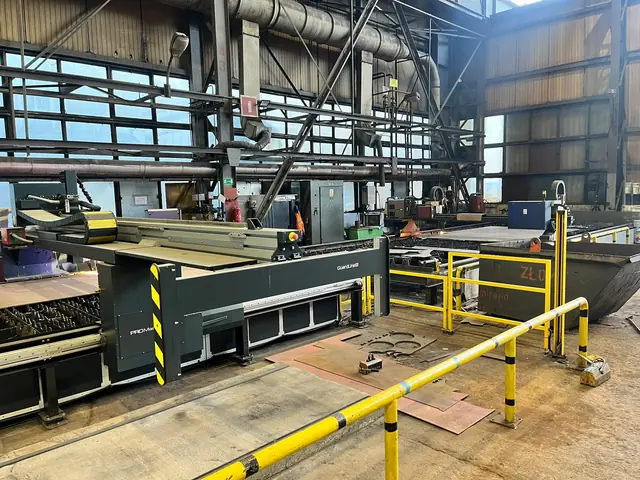

Gusset plates, stiffeners, column base plates and embedded plates — a complete set of components for one structure.
Thick plates
Sections a laser cannot handle: plasma up to 40 mm, oxy-fuel torch up to 150 mm.
Weld edge
Bevel made together with the cut, at the angle given on the drawing.
Bevelling and chamferingPipes
The same machine cuts pipes with diameters from 60 to 650 mm, in 2D and 3D.
Pipe cuttingHow to order plate cutting
From drawing to collection of the finished parts.
-
Drawing
You send a DXF, DWG or STEP file. The form takes attachments.
-
Quote in 24 h
We send back a price and confirm the machine slot.
-
Cutting
Your material or ours — we agree on this at the quotation stage.
-
Collection
You collect the finished parts in Szczecin at ul. Antosiewicza 1.
Frequently asked questions
What is the maximum plate thickness?
Plasma up to 40 mm, oxy-fuel torch up to 150 mm. We choose the cutting process to suit the plate thickness.
How large a plate fits on the table?
Up to 12 000 × 3 000 mm, i.e. twice as long as a typical 6 × 2 m commercial sheet.
What file formats do you accept?
DXF, DWG and STEP. They can be uploaded directly in the quote form.
Are the edges prepared for welding?
Yes. Bevelling is done automatically together with the cut, with no second operation.
What material do you cut?
Carbon steel. The material can be supplied by you or by us — we agree on this at the quotation stage.
Do you take on single pieces?
Yes. We take on single parts as well as projects running to several hundred hours of cutting.
How much does it cost?
Every job is priced individually — the price depends on the material, thickness, contour length and quantity. We send the quote within 24 hours of receiving the drawing.
